| Automatic hydraulic pressure block machine |
 |
a. The flow of complete line:
PLDE-1200 electronic material feeder---- JS-500 double shaft
blender---- Material tank----ST-500 belt conveyor----Plate
conveyor----Block machine--- Plate discharger---- Stacking
machine
|
| b. Major technological data |
| Producing capacity |
15seconds/mould |
specifications |
| Vibration frequency |
3920times/min |

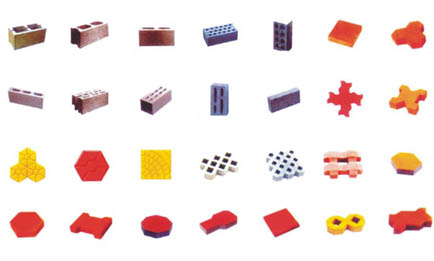

390*190*190 air block,6/mould,
240*115*90 small air block,21/ mould
240*115*53 standard brick,39/mould
250*250*60 road brick,6/mould
225*111*60 road brick 21/mould
200*100*60 road brick,24.mould
|
| Pressure of oil pump |
30Mpa/cm |
| Maximum pressure |
230KN |
| Electric motor |
Y180L-4-22kw |
| Gross weight |
11.5t |
| Overall dimensions |
1090*2100*2770mm |
|
|
