AGICO Sale Block Making Machine, Hollow Block Machine in China
Automatic hydraulic pressure block machine
a. The flow of complete line:
PLDE-1200 electronic material feeder---- JS-500 double shaft blender---- Material tank----ST-500 belt conveyor----Plate conveyor----Block machine--- Plate discharger---- Stacking machine
b. Major technological data
| Producing capacity | 15seconds/mould | specifications |

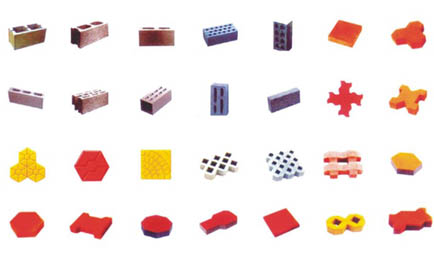

| Vibration frequency | 3920times/min | 390*190*190 air block,6/mould, 240*115*90 small air block,21/ mould 240*115*53 standard brick,39/mould 250*250*60 road brick,6/mould 225*111*60 road brick 21/mould 200*100*60 road brick,24.mould |
| Pressure of oil pump | 30Mpa/cm | |
| Maximum pressure | 230KN | |
| Electric motor | Y180L-4-22kw | |
| Gross weight | 11.5t | |
| Overall dimensions | 1090*2100*2770mm |
 |
| ·Casting and Forging ·Zinc Coated Steel Sheets ·Block Making Machine ·Brick Making Machine ·Hot-Rolled Steel Plate |
 |
|
