Maunfacture the High Frequency Spind
The High Frequency Spindle for Machine Centre and Parallel Lathe

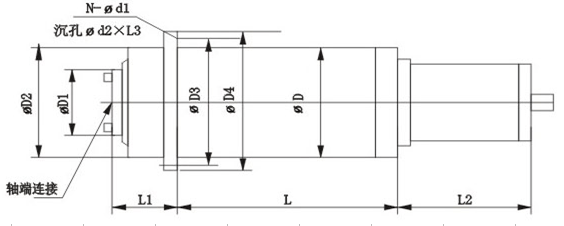

| Spindle type | Dimensions(mm) | |||||||||
| D | D1 | D2 | D3 | D4 | L | L1 | L2 | N-d1 | D2×L3 | |
| ADS0820-30Z/1.8 | 80 | 25 | 60 | -- | -- | 312 | -- | -- | -- | -- |
| ADS1130-18Z/3.2 | 110 | 34 | 108 | -- | -- | 217 | -- | -- | -- | -- |
| ADS1130-30Z/3.2J | 110 | 34 | 83 | -- | -- | 238 | -- | -- | -- | -- |
| ADS1230-24Z/5 | 120 | 34 | 119 | 140 | 165 | 335.5 | 50 | -- | -- | -- |
| ADS1430-4-12Z/15 | 140 | 53.3 | 140 | 160 | 180 | 325 | 70 | 90 | 8-Φ9 | Φ14×9 |
| ADS1425-18/3 | 140 | 37 | 95 | 163 | 186 | 208 | 87 | 108 | 6-Φ9 | Φ13.5×9 |
| ADS1530 | 150 | 34 | 100 | -- | -- | 231 | 50.5 | 114 | -- | -- |
| ADS1530-18Z/7.3J | 150 | 34 | 100 | -- | -- | 231 | 50.5 | 144 | -- | -- |
| ADS1520-24Z/7.3 | 150 | 28 | 112 | -- | -- | 254 | 34 | 110 | -- | -- |
| ADS1640-6Z6 | 160 | 68 | 160 | 180 | 202 | 345 | 150 | 111 | 6-Φ11 | Φ17×12 |
| ADS1740-2Z/2.2 | 170 | 72 | -- | 195 | 230 | 655 | 65 | 124 | 8-Φ11 | Φ17×12 |
| ADS1740-3-9Z/3.7J | 170 | 62 | 143 | 195 | 230 | 479 | 153 | 181 | 6-Φ12 | Φ18×10 |
| ADS1740-8Z/6 | 170 | 68 | 150 | 190 | 210 | 274 | 130 | 111 | 6-Φ11 | Φ18×11 |
| ADS2040-3-10/5.5 | 200 | 63 | 145 | 225 | 250 | 405 | 135 | 124 | 6-Φ13 | Φ19×13 |
| ADS2040-3-10/7.5 | 200 | 63 | 145 | 225 | 250 | 445 | 135 | 124 | 6-Φ13 | Φ19×13 |
| ADS2940-15-10/11 | 290 | 68 | 180 | 315 | 340 | 375 | 135 | 124 | 6-Φ13 | Φ19×13 |
| ADS2940-1.5-10/15 | 290 | 68 | 180 | 315 | 340 | 405 | 135 | 124 | 6Φ13 | Φ19×13 |
 |
