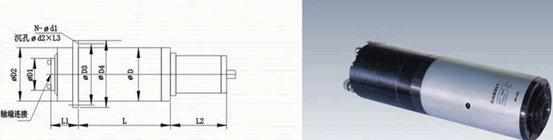

The High Frequency Spindle for Machine Centre and Parallel Lathe

The High Frequency Spindle for Machine Centre and Parallel Lathe



Motor
Spindle type Speed (r/min) KW V A Hz Lub Cool Joint of spindle nose Bearing type Character
ADS0820-30Z/1.8 30000 1.8 220 7 500 Grease  Water IS020taper hole 2×B7005C/P4
1×7003C/P4 Have sensor and broaching tool
ADS1130-18Z/3.2 18000 3.2 220 11.6 300 Grease Water BT30taper hole 2×B7007C/P4
1×7005C/P4 Have sensor and broaching tool
ADS1130-18Z/3.2J 18000 3.2 220 11.6 300 Grease Water BT30taper hole 2×B7007C/P4
1×7005C/P4 Have encoder and broaching tool
ADS1230-24Z/5 24000 5 350 10.5 400 Grease Water BT30taper hole 2×B7007C/P4
2×7005C/P4 Have sensor and broaching tool
ADS1430-4-12Z/1.5 4000 1.5 220 5.7 133 Grease Water BT30taper hole 2×VEX55/P4
12000 380 400 2×VEX40/P4 Have sensor and broaching tool
ADS1425-18/3 18000 3.6 350 8.5 600 Grease Water 2×B7008C/P4
IS025taper hole 2×7008C/P4 Have broaching tool
ADS1530-18Z/7.3 18000 7.3 293 19 300 Grease Water BT30taper hole 2×7007C/P4
2×7006C/P4 Have sensor and broaching tool
ADS1530-18Z/7.3J 18000 7.3 293 19 300 Grease Water BT30taper hole 2×7007C/P4
2×7006C/P4 Have encoder and broaching tool
ADS1520-24Z/7.3 24000 7.3 293 19 400 Grease Water IS020taper hole 2×7006C/P4
2×7005C/P4 Have sensor and broaching tool
ADS1640-6Z/6 6000 6 380 11.7 200 Grease Water BT40taper hole 3×7014C/P4
2×7210C/P4 Have sensor and broaching tool
ADS1740-2Z/2.2 2000 2.2 350 5.9 66.7 Grease Water BT40taper hole 3×B7015C/P4
2×7011C/P4 Have encoder and broaching tool
ADS1740-3-9Z/3.7J 3000 3.7 220 12.5 100 Grease Water BT40taper hole 2×VEX65/P4
9000 380 11.3 300 2×E250/P4 Have encoder and broaching tool
ADS1740-8Z/6 8000 6 350 12.8 267 Grease Water BT40taper hole 2×7014CAT/P4
2×7209CAT/P4 Have sensor and broaching tool
ADS2040-3-10/5.5 3000 5.5 220 19.4 100 Grease Water BT40taper hole 3×VEX65/P4
10000 380 300 2×VEX55/P4 Have encoder and broaching tool
ADS2040-3-10/7.5 3000 7.5 208 25 100 Grease Water BT40taper hole 3×VEX65/P4
10000 380 333 2×VEX55/P4 Have encoder and broaching tool
ADS2940-1.5-10/11 1500 11 220 42 100 Grease Water BT40taper hole 3×VEX65/P4
10000 380 333 2×VEX55/P4 Have encoder and broaching tool
ADS2940-1.5-10/15 1500 15 220 56 100 Grease Water BT40taper hole 3×VEX65/P4
1000 380 333 2×VEX55/P4 Have encoder and broaching tool
