We have engaged in the oil press market since 1992.It is a very good product already has big international market, and also has much potential for future.
We supply both big and small scale oil press,with capacity from 1T/D to 260T/D.They all mainly use the working principle of extrusion of the raw material with screw.And can process kinds of material,like peanut,soybean,sunflower seeds,coconut,jatropha seeds,grape seeds,and etc.
The main flowchart of the machine working:
When oil press is operating,prepared materials enter the extruding chamber from the hopper and then moves forwards by the rotating pressing screwed and is pressed.Under the high pressure condition in the chamber,friction between material and screw,it will be created,which also creates friction and relative movement among material particles.On the other hand,root diameter of the pressing screw varies large from one end to the other,hence,when rotating,it not only pushes particles adjacent the screw will rotate along with screw’s rotating,causing every particle insides the chamber to possess different speed.Therefore,relative movement among particles creates heat which is necessary during manufacturing because of helping protein change properly,damage colloid,increase plasticity,decrease oil’s elasticity,resulting in high oil productivity.

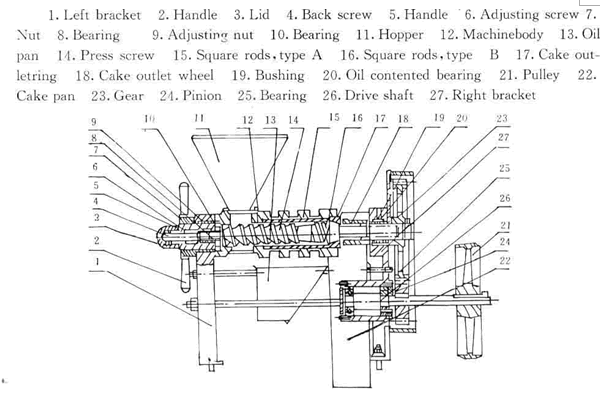

The structure of the screw press pls find below:
Screw Press
For the small scale oil press,they are characterized by their simple design,easy to operate,wide suitability and continuous operation,they are suitable for small sized oil extruding workshops or professional farmers.Certainly they can be used for prepressing in submerging oil workshops,too.
For the big oil press,they are characterized with low pressing temperature,high oil output,low residuel,light color of the oil product,high quality and rich nutrition of the product,can meet the international standard.
Flour mill is another successful product of our company.
The original model is 6FY series
After many experience for help customers to improve their machine,we also advance the original model to some improved ones.
The machines are compact in structure, fine in appearance.
It has the advantages of low energy-consumption, low noise good performance and high efficiency. And already exported for many years with large quantity all over the world.
