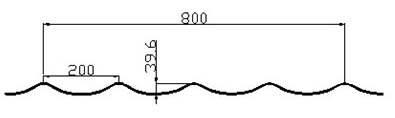

TF39.6-200-800 Glazed Tile Forming Machine

MACHINE COMPONENTS:
(1) Manual Un-coiler 1 set
(2) Roll-Forming M/C 1 set
(3) Hydraulic Pressing Die/Cutting M/C 1 set
(4) PLC Control System 1 set

TECHNICAL SPECIFICATION

(1) Manual Un-coiler:
Un-powered; max.capacity:5 ton
*Hydraulic Un-Coiler(option):
Hydraulic system to expand coil inner hole;
Frequency Inverter to regulate turning speed;
Automatic stop device;Load capacity = Max.5Tons;

(2) Roll-Forming M/C:
Gear/Sprocket driving;13-step to form
Forming speed:Approx. 3-6m/min;


(3) Hydraulic Pressing Die & Cutting M/C:
Stop to cut, Pressing die and Post cut
Material of Pressing tool: Cr40, Heat treatment ;Pressing Depth:15mm
Material of cutting tool: Cr12

(4) PLC Control System:
Control the quantity, cutting length automatically
Cut-to-length tolerance ?3.0 mm

Option
Hydraulic un-coiler
Hydraulic system to expand coil inner hole;
Frequency Inverter to regulate turning speed,
Automatic stop device;Load capacity = Max.5Tons;
