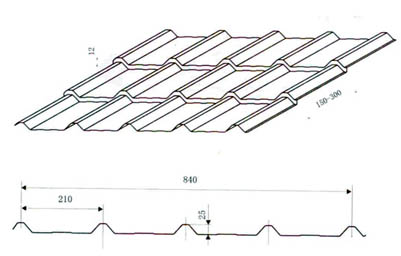

TF25-210-840 Glazed Forming Machine - Roll Cutting Machine

MACHINE COMPONENTS:
(1) Manual Un-coiler 1 set
(2) Roll-Forming M/C 1 set
(3) Hydraulic Cutting 1 set
(4) Pressing die 1 set
(5) PLC Control System 1 set
(6) Product Rack (un-powered) 1 set

 TECHNICAL SPECIFICATION
(1) Manual Un-coiler:
Load capacity = Max.5Tons
(2) Roll-Forming M/C:
About 15-steps to form; Material of Roller: 45# steel with chromizing on surface
Voltage:380V/60Hz; Main line speed:6 m/min;
(3) Hydraulic Cutting:
Stop to cut, Post cut,
Cutting tool material: Cr12, Heat treatment
(1) Hydraulic pressing die:
Stop to press, Post to press, Depth of the stair is 15mm , Length of the stairs are 150mm-300mm press tool material 40Cr.
(2) PLC Control System:
Using Mitsubishi PLC Control the quantity, length automatically, LCD screen,
(5) Product Rack (UN powered)

Product feature and usage
The products are widely used as the floor of high building?factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc.
